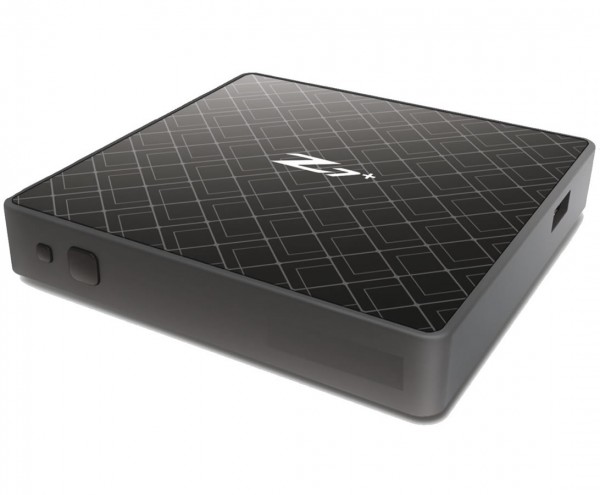

Cutting-edge features for all your future requirements The all-new Z7+ has been designed from the ground-up with maximum performance in mind.
Containing the newest decoding technologies and Android 7 Nougat at its core, the new Z7+ will provide customers with years of streaming media enjoyment through various apps including MYTVOnline.
Play Store, IPTV Middleware, KODO 17+, Quad-Core, 3D Games, Miracast, Micro SD Menory, Applications.
Android 7.0, VP9(4K 10-bit), H.265 HEVC, WiFi, Bluetooth, Stalker, Xtream codes, Ultra Low Power, USB 3.0, DVB-T2(T/C) USB
|
Specifications |
||
|
A/V Decoding |
||
|
Video Decoding |
H.265/HEVC Main/Main 10 profile@level 5.1 high-tier, |
|
|
Maximum 4K x 2K@60 fps 10-bit VP9 decoding |
||
|
H.264/AVC BP/MP/HP@level 5.1, H.264/AVC MVC |
||
|
AVS baseline profile@level 6.0, AVS-P16 (AVS+) |
||
|
VC-1 SP@ML, MP@HL, AP@levels 0−3 |
||
|
Image Decoding |
Full HD JPEG hardware decoding,maximum 64megapixels |
|
|
PNG hardware decoding,maximum 64megapixels |
||
|
Video Formats |
4:3 Letter Box, 4:3 PanScan, 16 : 9 |
|
|
Video Resolution |
720 x 576i, 720 x 480i, 1280 x 720p |
|
|
1920 x 1080i, 1920 x 1080p, 4K x 2K |
||
|
Audio Decoding |
Dolby Digital Plus, MPEG-1 Layer 1,2 |
|
|
AAC-LC and HE AAC V1/V2 decoding |
||
|
Audio Mode |
Streo/Joint stereo/Mono, Dolby AC-3 |
|
|
Sampling Rate |
8khz to 192khz sampling rate |
|
|
Main System |
||
|
Main Processor |
Hisilicon chipset |
|
|
Memory |
eMMC : 8 GBytes |
|
|
SDRAM : 2 GBytes (DDR4) |
||
|
Audio / Video & Data IN/OUT |
||
|
HDMI |
Video & Audio Output(max. 4Kx2K@60 fps) |
|
|
USB |
USB3.0, USB2.0 |
|
|
ETHERNET |
RJ45 connector, 10/100M Base |
|
|
Phone Jack |
CVBS Video Output, Audio L, R Output |
|
|
Micro SD Card |
Micro SD Card Slot Support |
|
|
IR Extention |
Removable IR extension |
|
|
OPTIC |
SPDIF |
|
|
Front Panel |
||
|
Indicators |
1 Dual Color LED(Standby, Remote) |
|
|
Power Supply |
||
|
Input Voltage |
AC 100 ~ 240V, 50/60Hz |
|
|
Type |
12V Adaptor |
|
|
Power Consumption |
Max. 15W |
|
|
Standby Power |
Max. 0.5W |
|
|
Protection |
Separate Internal Fuse & Lighting protection |
|
|
Physical Specification |
||
|
Size (W x H x D) |
103mm X 18.2mmX 103mm |
|
|
Operating Temp. |
0°C ~ +45°C |
|
